ثلاثة عقود من الخبرة في الإضاءة البحرية، نطرحها الآن في السوق مباشرة. مصممة لخفر السواحل والبحث والإنقاذ وصيد الأسماك التجاري والعمليات البحرية — حيث الضوء هو الحياة.
The En-Vision Series is the product of three decades of marine lighting engineering, now brought to market directly under the Arco Illumination brand. Built for coast guard, search and rescue, commercial fishing, and offshore operations — where light is life.
Onboard gyroscope maintains precise beam projection regardless of vessel pitch and roll. Your target stays lit even in rough seas.
Integrates directly with AIS data. Automatically orients the beam to the GPS position of a vessel-in-distress — hands-free search capability.
360° continuous horizontal rotation with 270° vertical arc. Dual-input architecture: TCP/IP (RJ45) and RS-485 (Pelco-D), firmware selectable.
Gyro-stabilized, AIS-linked searchlights at 1+ km range have historically cost $15,000–$50,000+, placing them out of reach for small commercial and recreational vessels. The en-vision 6 changes that.
Charter boats, fishing vessels, patrol craft, and yachts — operators who previously had no viable gyro-stabilized search light option.
1.2 km optical span · gyro-stabilized beam · AIS-linked targeting · IP67 sealed — the complete professional specification, under $5K.
30 years of ODM manufacturing depth, now ingeniously packaged for a market that has never had access to this technology — until now.
| المواصفة | en-vision 6Entry · Small Vessel Market |
en-vision 18Mid-Range · Commercial |
en-vision 27Flagship · Professional |
|---|---|---|---|
| الأداء | |||
| Peak Intensity | 1.5+ MCD | 6.0+ MCD | 9.0+ MCD |
| Optical Span (1 lux) | ~1.2 km | ~2.45 km | ~3.0 km |
| Beam Angle (50% / 10%) | 1.8° / 3.9° | 1.8° / 3.9° | 1.8° / 3.9° |
| Color Temperature | 5700K | 5700K | 5700K |
| الطاقة | |||
| Max Power | 115W | 220W | 290W |
| Supply Voltage | 48VDC (2.54A) | 48VDC (4.6A) | 48VDC (6.0A) |
| الحركة والتحكم | |||
| Horizontal Rotation | 360° | 360° | 360° |
| Vertical Arc | 270° | 270° | 270° |
| AIS Linked | Yes | Yes | Yes |
| Control Protocol | TCP/IP · Pelco-D | TCP/IP · Pelco-D | TCP/IP · Pelco-D |
| البيئية | |||
| Ingress Protection | IP67 | IP67 | IP67 |
| Impact Rating | IK08 | IK08 | IK08 |
| Shock Rating | 30g / 11ms | 30g / 11ms | 30g / 11ms |
| Operating Temperature | −40°C to +55°C | −40°C to +55°C | −40°C to +55°C |
| ESD | EN 61000-4-2 Level 4 | EN 61000-4-2 Level 4 | EN 61000-4-2 Level 4 |
| المادية | |||
| Dimensions (mm) | 295 × 278 × 155 | 442 × 423 × 190 | 511 × 500 × 240 |
| Weight | 6.5 kg | 16.5 kg | ~25 kg |
* en-vision 27 includes calculated values. Actual results may vary. Specifications subject to change without notice.
Waterproof RJ45 (TCP/IP) + RS-485 (Pelco-D). Firmware-selectable. NMEA 2000 compatible via GL Digital Joystick controller. Direct NMEA 2000 port planned for en-vision v2 (2027).
U.S. Patent No. 12,600,445 B1 for dual-axis azimuth control and gyro-stabilized beam projection, supported by U.S. Patent No. 11,096,254 B1 for the multi-scattered light-source apparatus. Built-in zoom structure allows field-adjustment of beam concentration for target range optimisation. Backed by an 80+ patent portfolio granted and pending across the US, EU, and Asia.
IP67 sealed. IK08 impact-rated. Shock qualified to IEC 60068-2-27 (30g / 11ms). ESD Level 4 (EN 61000-4-2). Operates −40°C to +55°C. Built for the world's harshest marine environments.
Backed by General Luminaire Ltd — three decades supplying private-label marine lighting to coast guard, commercial fishing, and offshore operators across Asia and North America. Now brought to market directly under the Arco Illumination brand.
From search and rescue to offshore patrol — and now opening a new chapter for small commercial and recreational vessels.
AIS-linked auto-targeting. Gyro beam stability in heavy seas. 3 km+ range on en-vision 27.
360° continuous sweep. Night operations at range. Bridge-integrated control.
Deck & water illumination. Robust IP67 sealed housing. Reliable in hosedown environments.
Platform & rig operations. Vessel approach lighting. Long-haul 48V DC power.
Precision beam control. Low EMI design. NMEA 2000 compatible.
Durable IK08 impact rating. ESD Level 4 protection. Dual redundant control input.
Charter boats, yachts, and fishing vessels. Professional technology accessible for the first time under $5K.

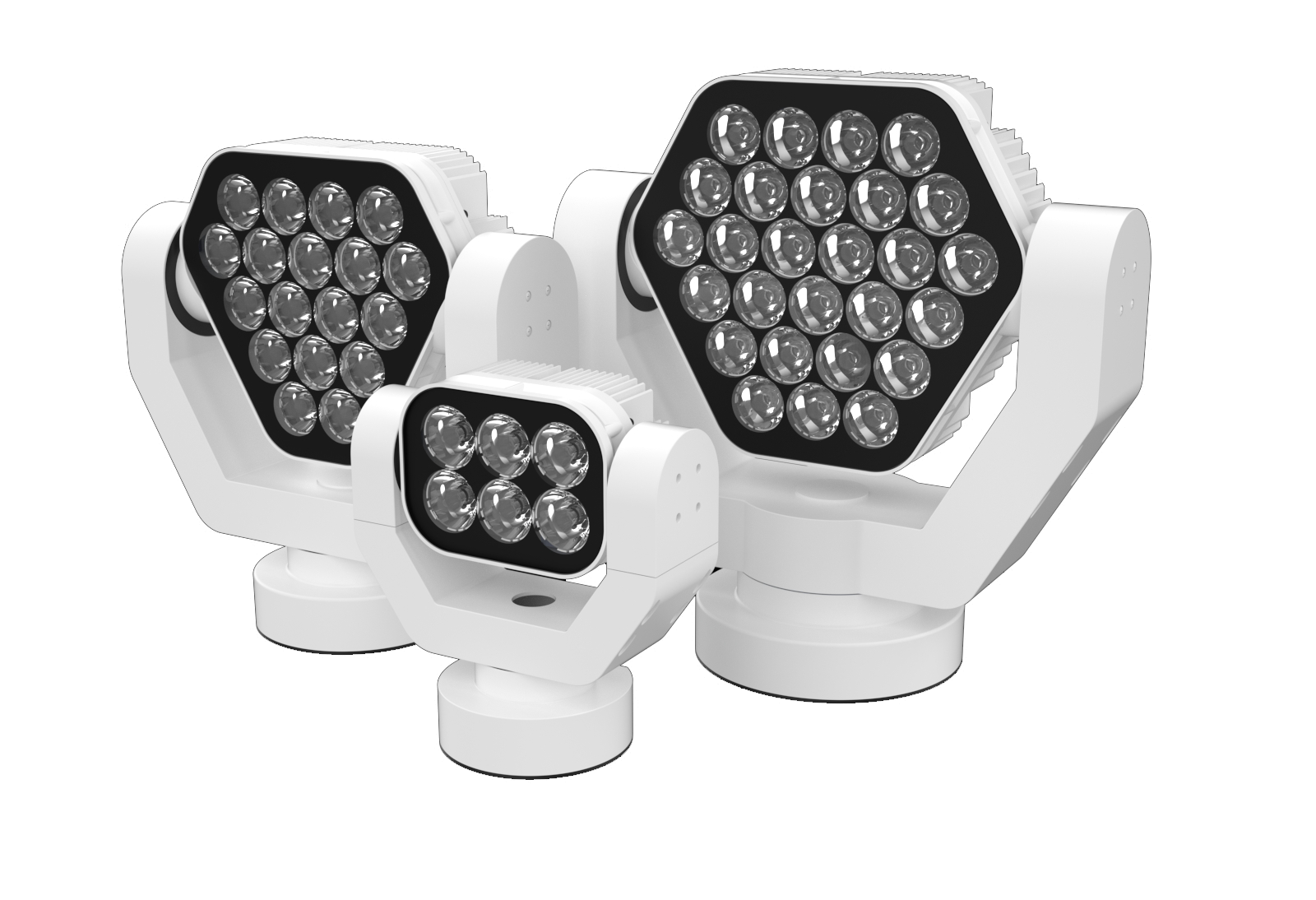

Three models. One unified architecture. Scalable from recreational to the world's most demanding professional operations.
Full technical documentation available for download. Contact us for custom integration support.
Product enquiries, integration support, and distributor partnerships. Our team is ready to help you specify the right En-Vision model for your vessel and mission.
