Sense — إضاءة متصلة

ضوء.
شبكة Mesh. تكيّفي · مُشفَّر · تحكم عبر التطبيق

منصة إضاءة متصلة مصممة للمباني الصناعية والتجارية. يحمل كل مصباح شريحة BLE خاصة به، وينضم إلى شبكة Sense Mesh، ويتكيّف فوريًا — دون إعادة تمديد الأسلاك في المبنى.

8 مصابيح

سلسلة AS المتصلة

128 بت

شبكة Mesh مشفَّرة SIG

150+ lm/W

ذروة الكفاءة (AS-HB1)

تابع التمرير

المنصة

ضوء
يستجيب.

تضع Sense راديو Bluetooth Mesh ومعالج DSP 32-bit داخل كل مصباح. والنتيجة شبكة إضاءة ذاتية التنظيم تقدّم خفضًا قابلًا للقياس في الطاقة، وبيانات إشغال فورية، وتكاملًا بمستوى SCADA — دون تكلفة أو تعطّل أنظمة التحكم السلكية القديمة.

⌬

Sense BLE

شبكة Bluetooth Mesh خاصة مبنية على IEEE 802.15.1. كل مصباح عقدة — ذاتية الإصلاح، قابلة للتوسع، بلا نقطة فشل واحدة.

◐

تحكم تكيّفي للعامل البشري براءة ممنوحة

Microwave occupancy sensors and an embedded 32-bit DSP drive a peer-to-peer brightness gradient. Lamps set their own output using a pre-shared hierarchy — no central controller, no scheduler — so the lit zone moves with the occupant through the space.

⚿

أمان بمعيار SIG

128-bit AES encryption, three-level key lock, closed-loop architecture. Security and privacy by default, not by configuration.

⇄

جاهز لـ SCADA

Optional BGW-01 gateway bridges Sense to SCADA / BMS infrastructure. An Industry 4.0 piece, not a retrofit.

تقنية محمية · براءة ممنوحة

نظام مصابيح
العامل البشري.

Every Sense fixture stores an identity code and a relationship form — a pre-set hierarchical map of every other lamp in the network. When a lamp detects a person below, it drives to a priority luminous value (100%) and broadcasts. Neighbouring lamps receive the broadcast and set a secondary luminous value against their relationship to the active lamp: first-close at 75%, second-close at 50%, third-close at 25%.

The result is a brightness gradient that travels with each occupant — full output where work is happening, calibrated dim around it, near-dark where it isn't needed. No central control system. No additional networking infrastructure. Adjustment by mesh broadcast, not by SCADA polling.

Patent: 2108009US · "Human-Factor Lamp Capable of Intelligently Adjusting Ambient Light and System Thereof" · granted · part of Arco's 80+ patent portfolio

السلسلة

ثمانية مصابيح
متصلة.

From high-bay industrial to low-profile interior — every Sense fixture ships with the same mesh radio, the same DSP, and the same security model. Specify by form factor; the intelligence is consistent across the range.

AS-HB1

إضاءة الأسقف العالية

Industrial · Recessed Optic

High-efficacy LED high bay with recessed structure for reduced glare and spill. Plug-and-play sensors for occupancy, daylight, and emergency.

100–200W >150 lm/W Tempered Optional

ورقة مواصفات AS-HB↓ PDF

AS-SL1

إنارة الشوارع

Exterior · Roadway & Yard

High-efficacy LED streetlight for car parks, roadways, and yard lighting. Multiple optical, wattage, and CCT options.

IP66 Multi-Optic SCADA-Ready

*يرجى الاستفسار عن التوفر الحالي

AS-BL1

Baton / مقاوم ثلاثيًا

Industrial · IP65 Sealed

Sealed linear baton for warehouses, basements, tunnels, and industrial environments. Water-, dust-, and corrosion-proof.

120 lm/W Tri-Proof Surface / Suspend

ورقة مواصفات AS-BL↓ PDF

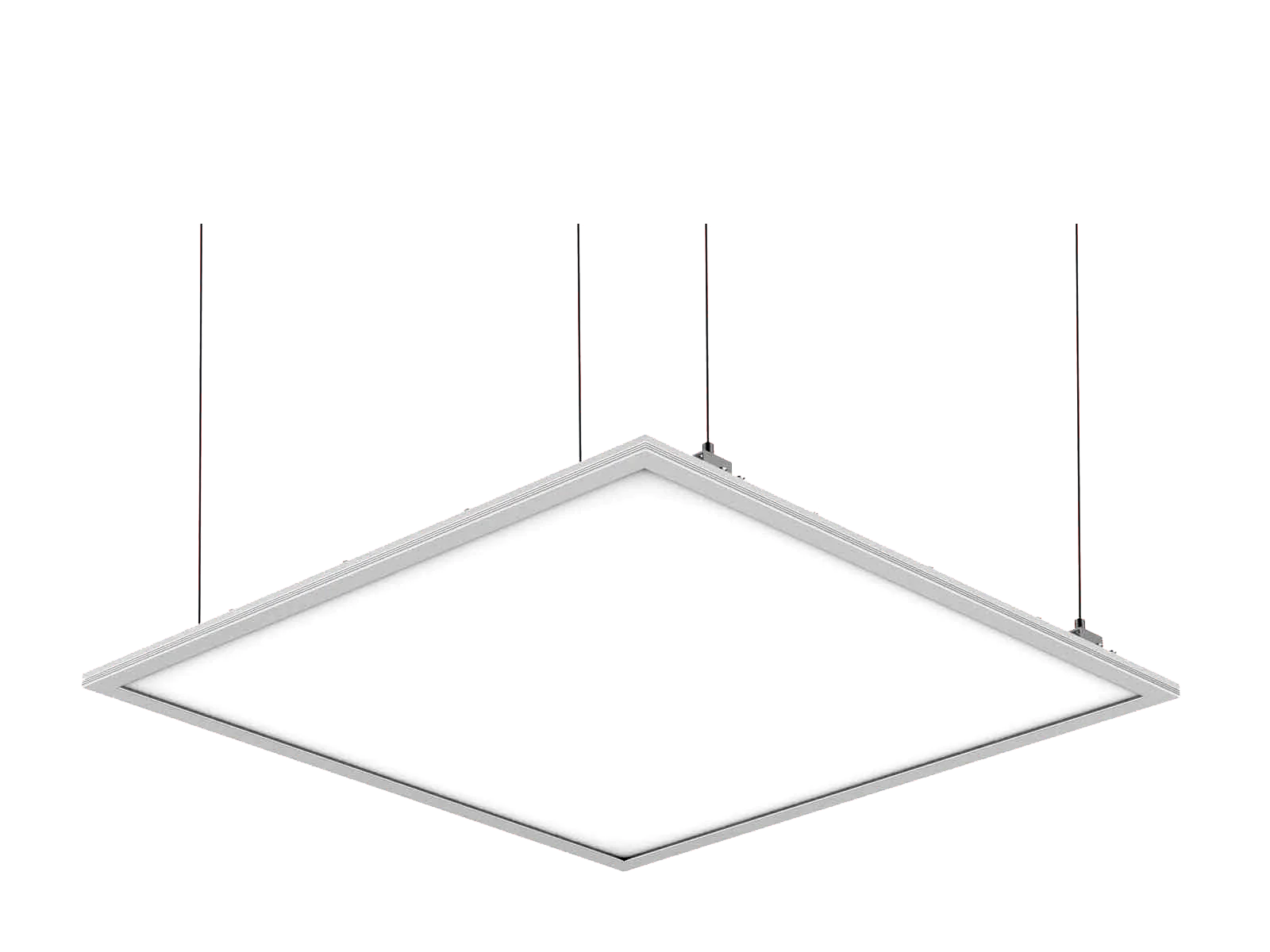

AS-PL1

إضاءة لوحية

Interior · Ultra-Slim Panel

10mm ultra-slim recessed panel with adjustable 3000–5700K dynamic white. UGR<19 optional, ErP compatible.

10mm Slim UGR<19 Dynamic White

ورقة مواصفات AS-PL↓ PDF

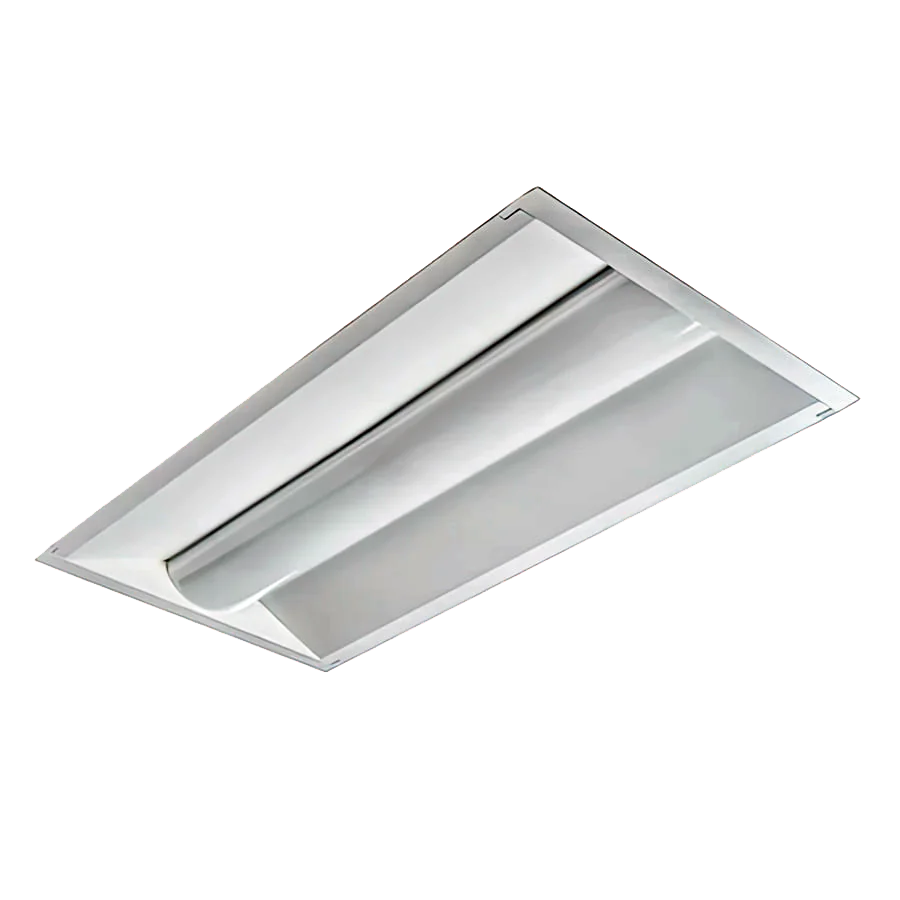

AS-TL1

تروفر

Interior · Recessed Office

Recessed troffer with multiple wattage and dynamic-white options. Engineered for office, school, and hospital ceilings.

Dynamic White Office / EDU Mesh-Native

ورقة مواصفات AS-TL↓ PDF

AS-DL1

سبوت داون لايت

Interior · Recessed

Recessed downlight available in multiple optics, dimensions, and CCTs. Drop-in replacement for legacy halogen and CFL downlights.

Multi-Optic Multi-Size Retrofit

*يرجى الاستفسار عن التوفر الحالي

AS-TK1

إضاءة بمسار

Interior · Track-Mounted

Tracklight head with multiple optic and CCT options. Mesh-controlled accent and display lighting for retail and gallery.

Adjustable Multi-Optic Retail / Gallery

*يرجى الاستفسار عن التوفر الحالي

AS-SL2

إضاءة خطية معلقة

Interior · Pendant Linear

Suspended linear luminaire with multiple optical, wattage, and CCT options. Direct, indirect, or direct/indirect distribution.

Direct/Indirect Multi-Length Open Plan

*يرجى الاستفسار عن التوفر الحالي

تطبيق Sense

تطبيق واحد.
مبنى كامل.

Commission a Sense network from your phone. The Sense app discovers fixtures automatically, assigns them to zones, and ships five pre-built scenes for common operating modes — Comfort, Eco, Standard, Display, and a Dynamic mode that hands control to Sense AI.

Adjust DIM, CCT, and beam-angle distribution per scene. Build advanced control strategies — occupancy sensing, daylight harvesting — without writing a line of configuration.

تشغيل تلقائي

Networking processes are carried out automatically. Add devices, assign zones, done.

مشاهد مُحمَّلة مسبقًا

Five scenes ship in the box — Comfort, Eco, Standard, and Display. Dynamic mode unlocks Sense AI adaptive control.

تخصيص لكل مشهد

DIM (brightness), CCT (colour temperature), and beam-angle distribution adjustable on every scene.

متوافق مع المعايير

Works only with Sense Bluetooth-mesh-qualified devices. SIG-standard 128-bit encryption end to end.

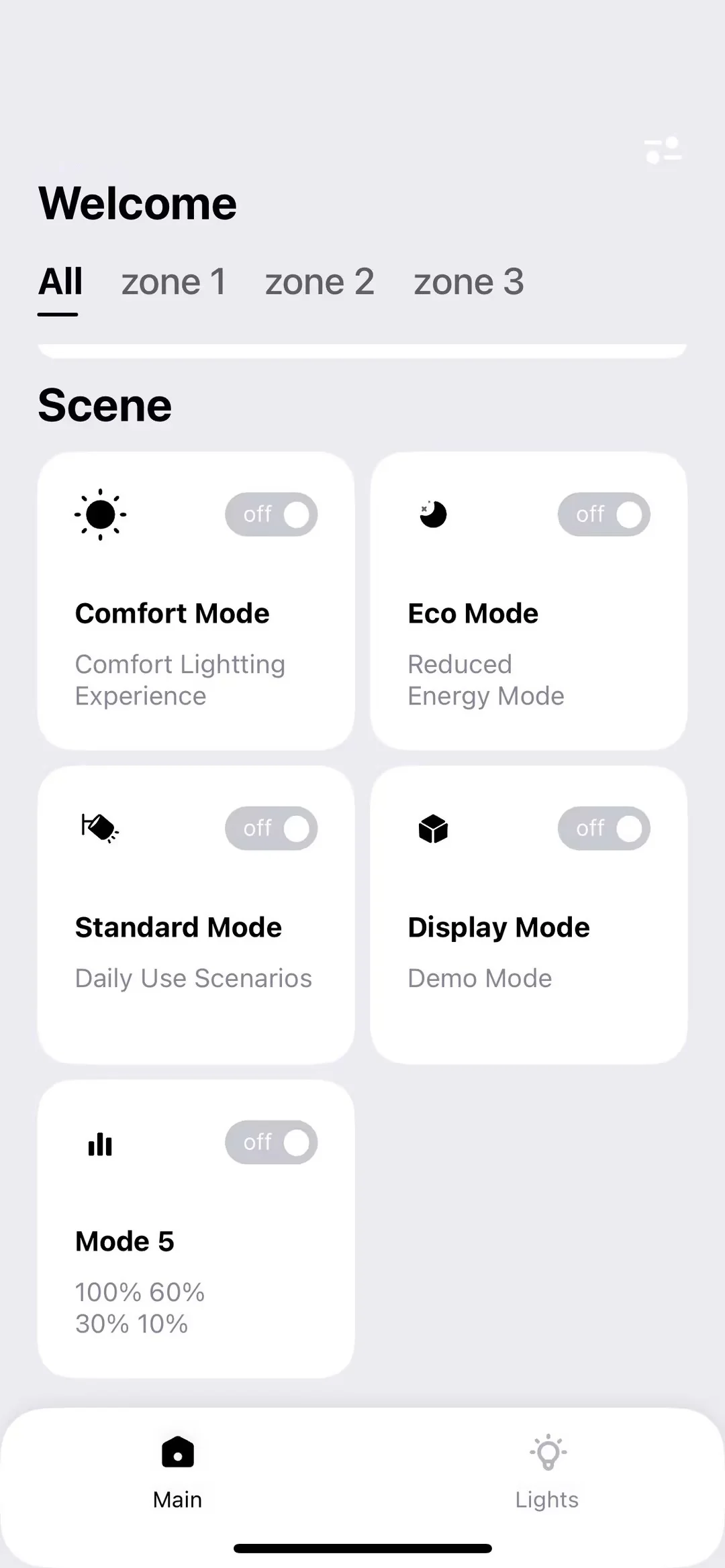

Sense app — Welcome scene picker showing Comfort, Eco, Standard, Display, and Dynamic Mode

Scene Picker
5 preloaded modes

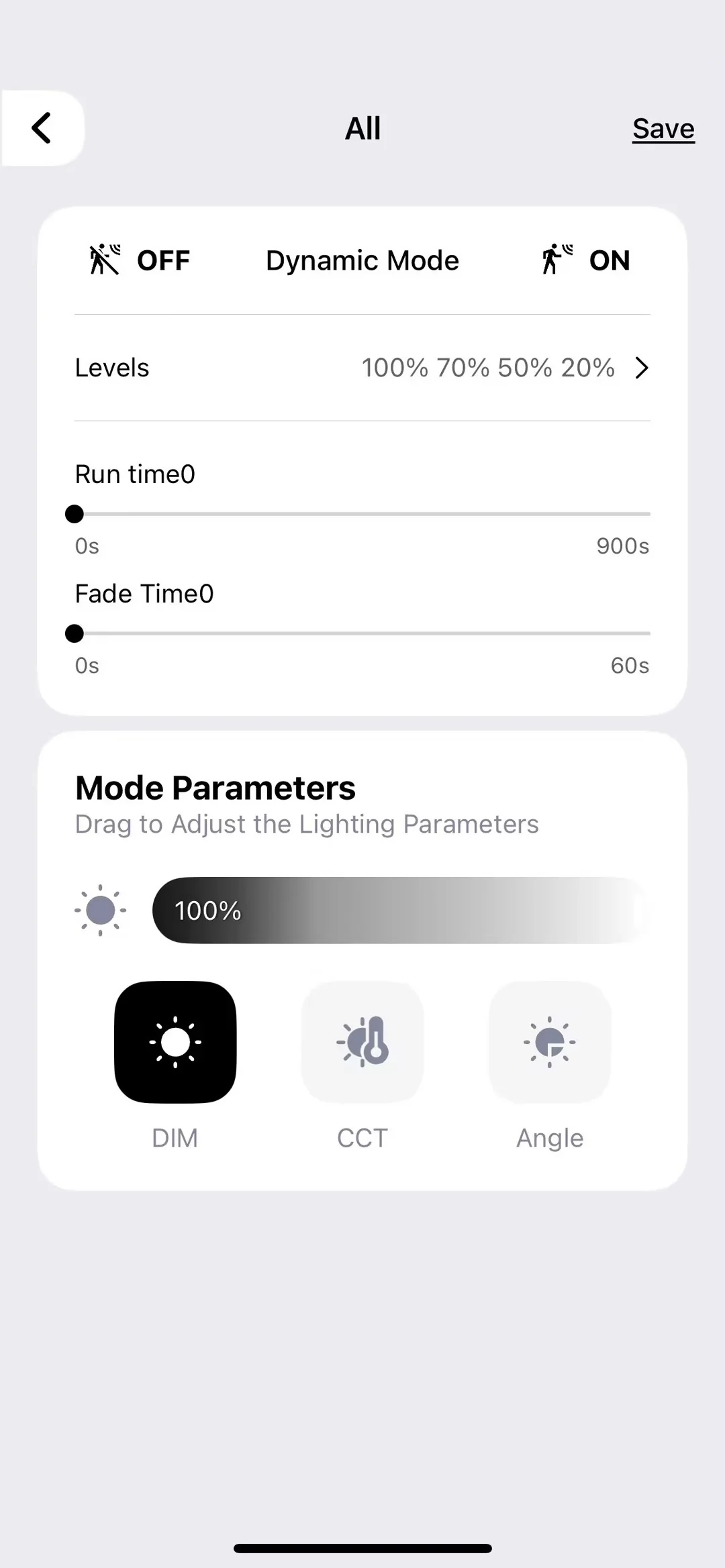

Sense app — Dynamic Mode parameters with brightness levels 100/70/50/20%, run time, fade time, and DIM/CCT/Angle controls

Dynamic Mode
Patented gradient control

أين تُعتمد Sense

مبانٍ تُسدّد
تكاليف نفسها.

Sense earns its budget back through energy reduction and operational data. Specified across industrial, commercial, and institutional spaces.

▣

أرضيات المصانع

Industry 4.0 automation. Adaptive lighting feeds occupancy and flow data into your SCADA system.

▤

المستودعات

High bays in aisles that only run when picked. Power consumption tracks throughput, not the clock.

▥

المكاتب

Daylight-harvesting troffers and panels that respond to real conditions, not fixed schedules.

▦

المدارس والمستشفيات

Tunable white for visual comfort. Mesh-secured commissioning that meets institutional IT policy.

▧

مواقف السيارات والساحات

AS-SL1 streetlights with motion-triggered brightness. Safety-first, energy-second.

▨

الأنفاق والطوابق السفلية

AS-BL1 tri-proof batons in the harshest indoor environments. Sealed, sensor-ready, mesh-connected.

▩

البيع بالتجزئة والضيافة

Tracklights, downlights, and tape light — scene-controlled per zone, no separate control system to specify.

◧

أهداف الحياد الكربوني

Shortest path to measurable energy reduction. Real building telemetry, real ESG reporting.

ضوء.
شبكة Mesh. تكيّفي · مُشفَّر · تحكم عبر التطبيق
